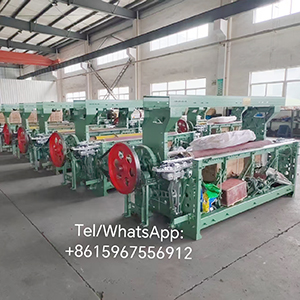

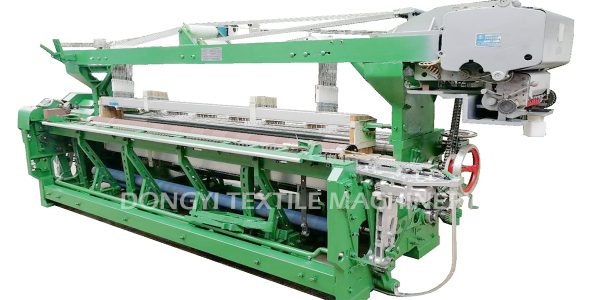

Shuttleless Rapier Loom with Cam Dobby Shedding
The shuttleless rapier loom is better quality and preference then shuttle loom and power loom, using the 6 to 8 colors weft selector, multiple weft colors change, can be equipped with dobby and jacquard and tappet box shedding, with the automatic pick finding device.thus the production can be increased,product quality can be improved, and a wide range of applications,improve the working environment,reducing the labor intensity,widely applicable by textile factories. the rapier loom is suitable for weaving of natural fibers, chemical fiber,blended yarns and others fabrics.
Description
Main Specification

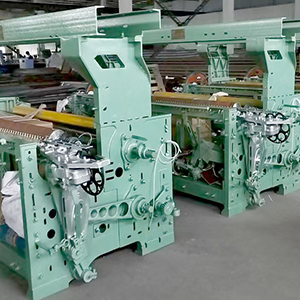

This model is using the heavy machine wall and beam ensure the weaving quality, choose the shedding method (dobby ,cam, jacquard) to weaving the kinds pattern fabrics, and 4 levers short connector and short sley to complete the beat up motion, the shaft adopt strong seamless tube to ensure the beat up strength. the rapier transmission box adopts the advanced helix umbrella gears to ensure the stable transmission.
1.Warping beam flange diameter: 600 mm, 680 mm, 800 mm(optional)

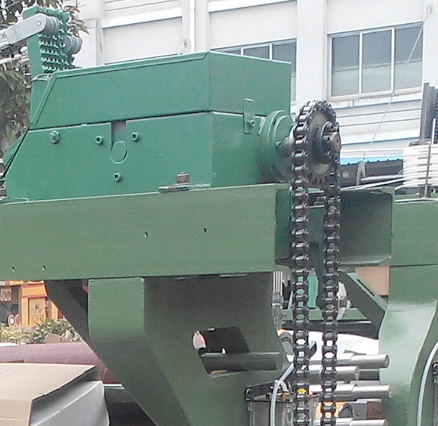

2.Strengthen type rapier transmission box, with wide gear rack.
3.Three rolls system can make cloth more tightly.
4.Mechanical continuous take up.
5. Flexible shedding method can achieve the various patterns design of fabrics.
6. Simple machine structure to avoid the failure rate.
7. Simple operation, easy to maintenance. low cost.
Technical Parameters
